121-0198 1210198 Wiring Harness for D5M Tractor

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	Jiajue
Número de modelo:	D5M

Cantidad de orden mínima:	1 unidad
Precio:	Please send by email or WhatsApp
Detalles de empaquetado:	121-0198 1210198 El arnés de cableado para el tractor D5M se empaqueta en un embalaje estándar de ex
Tiempo de entrega:	1-5 días laborables
Condiciones de pago:	LC, D/A, D/P, T/T, Unión Occidental,
Capacidad de la fuente:	100 unidades/mes

Mejor precio Contactar ahora

Información detallada

Nombre del producto:	121-0198 1210198 Arnés de cables para tractor D5M	Material:	Acero
Lugar de origen:	Cantón, China	Cantidad mínima de pedido:	1
OEM:	apoyo
Resaltar:	D5M tractor wiring harness , Excavator wiring harness replacement , 121-0198 wiring harness with warranty

Descripción de producto

121-0198 1210198 Wiring Harness for D5M Tractor

Product Specifications

Product Name	Wiring Harness
Part Number	121-0198
Engine Model	D5M/D6M/D6N
Type	Excavator Parts
Place of Origin	GUANGZHOU
Brand Name	JIAJUE
MOQ	1 Piece
Condition	New
Availability	Rich Stock
Approximate Weight	3KG
Size (per piece)	30cm x 25cm x 15cm
Shipment	Dispatched within 3 days

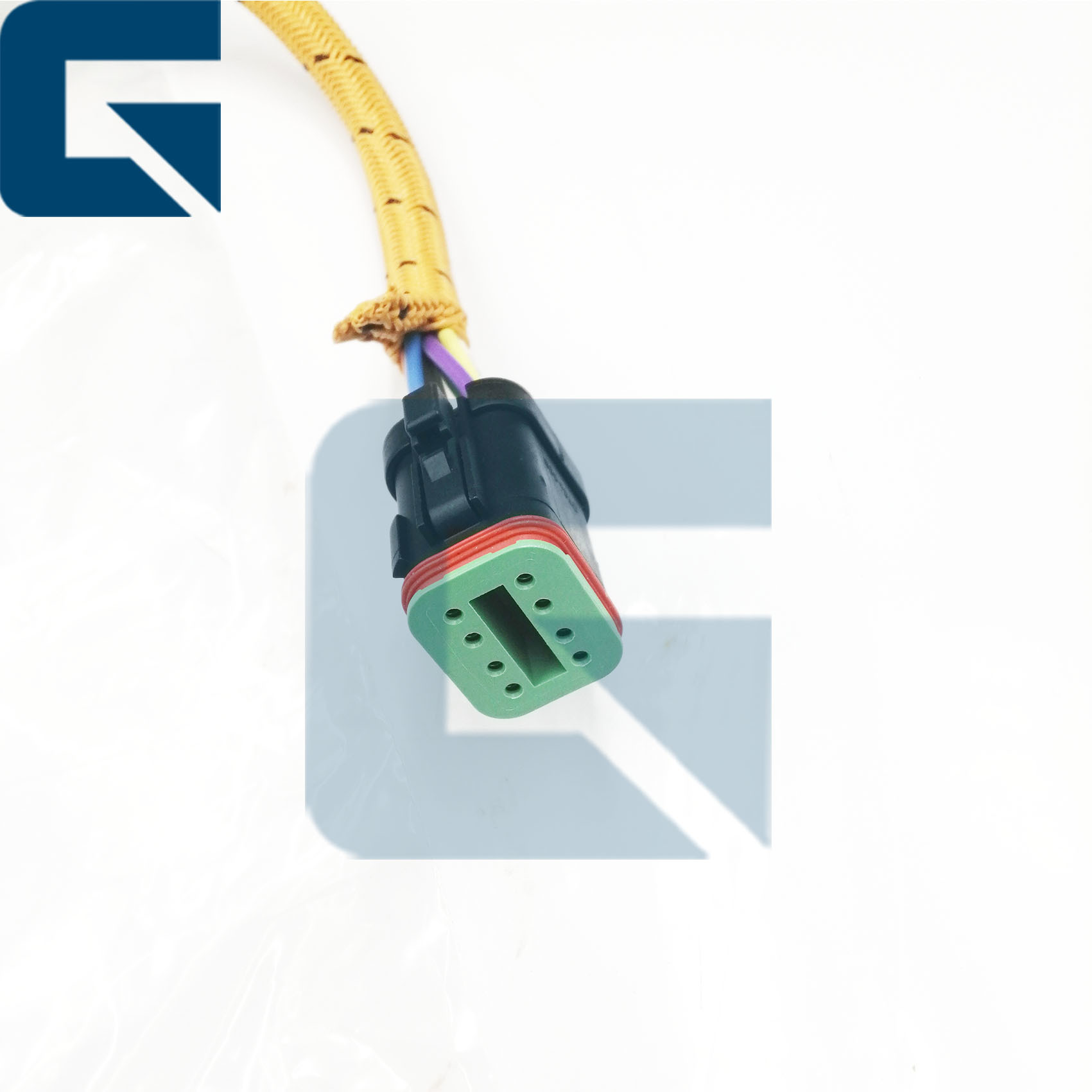

Product Images

Related Products

Frequently Asked Questions

Q1: How long does it take to install this harness to the machine?

Installing a complete 304-4513 harness, under normal conditions and without additional faults, requires 4-6 hours by mechanics (2 people working together).

Q2: How do we determine if a chassis harness is damaged?

E320D machine walking abnormality: drive motor solenoid not working, walking speed switching malfunction, fault codes appear or disappear when walking or shaking the wiring harness.

Q3: How does this harness ensure compatibility with the D6T?

It requires us to check:

Whether the circuit functions are consistent
Whether the number and arrangement of the plugs and pins are consistent
Whether the electrical voltage parameters are matched

Q4: What's your payment method?

Our payment methods include T/T, L/C, PayPal, etc.

Q5: Do you have stock?

Rich stock available.

Step-by-Step Testing Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Connect each plug of the wire harness to the corresponding hole on the test bench
Each time a switch is turned on, a function is tested. The corresponding indicator light turns on, indicating that the function is normal

Quick Checklist for Buyers

Preparation	Requirement
Battery	Must be disconnected
Old Harness	Compare with the new one first
Pins/Plugs	Clean and straight
Routing	Smooth path, no sharp edges
Fastening	Secure but not over-tightened
